DSD TECH SH-RJ12B USB to RJ12 RJ11 6P4C RS232 Serial Cable (Black)
- Regular price
- €22,95
- Regular price
-
- Sale price
- €22,95
Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.
Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.
When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.
We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.
You will also be asked to provide an email address, to which we will send confirmation that your order was placed.
Couldn't load pickup availability
- SKU:
- Brand: kamazon-626
- Type:
- Availability: In Stock

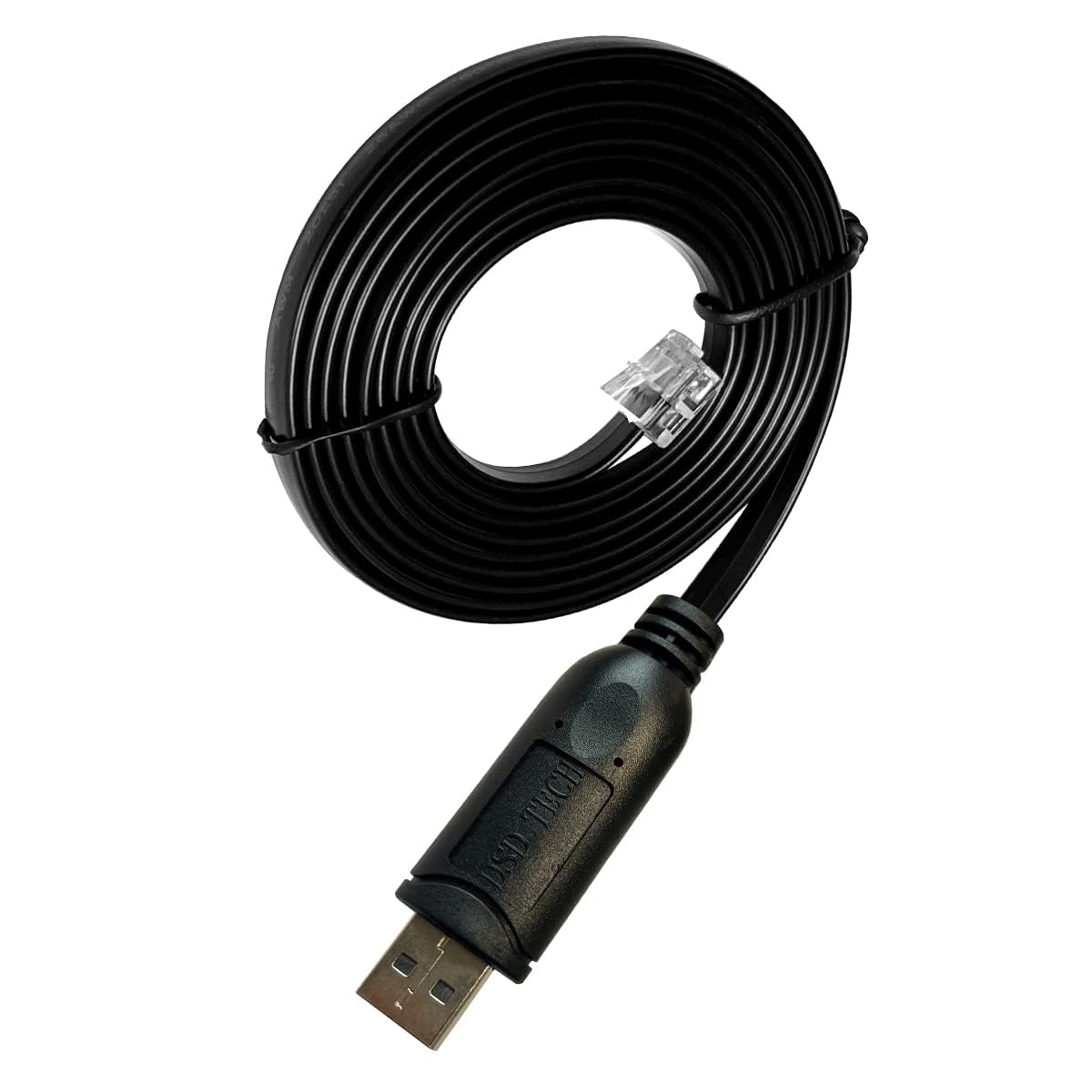

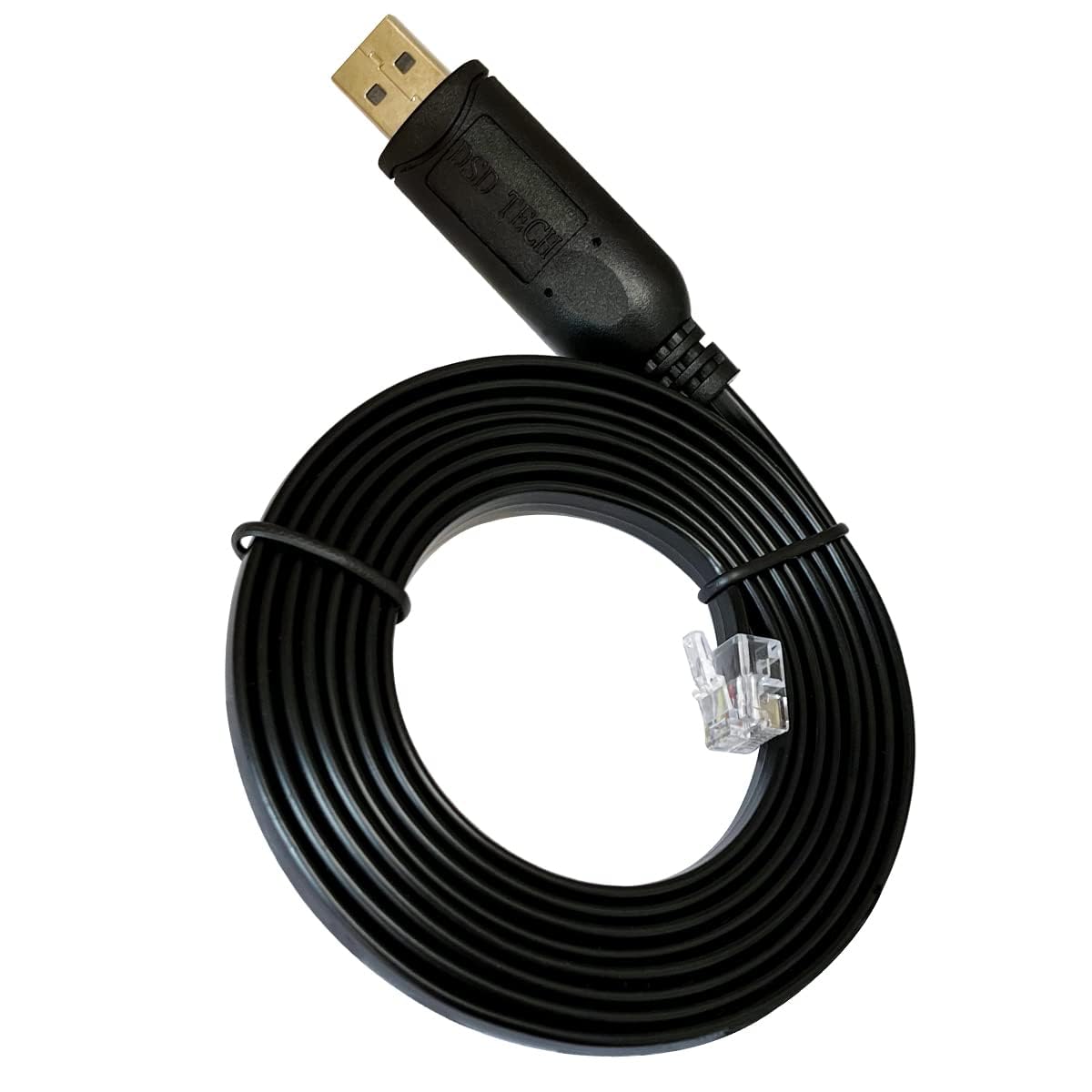

This USB to RJ11/RJ12 RS232 Serial Cable is 1.8 meters (5.9FT) in length.Built-in Silicon Labs CP2102N Serial Chip and RS232 Chip, Fully compatible with SH-RJ12A (ASIN:B07R2L22GW)
Specification:
Model: SH-RJ12B
Main chip: Silicon Labs CP2102N
Pin Definition: Gnd,Tx,Rx,Gnd
Communication protocol: RS232
Connectors: USB Type A, RJ12/RJ11 (6P4C)
The maximum speed: 2 Mbps
Cable Lenght: 1.8M/5.9 FT
Plug & Play after one time driver installation;
Precautions:

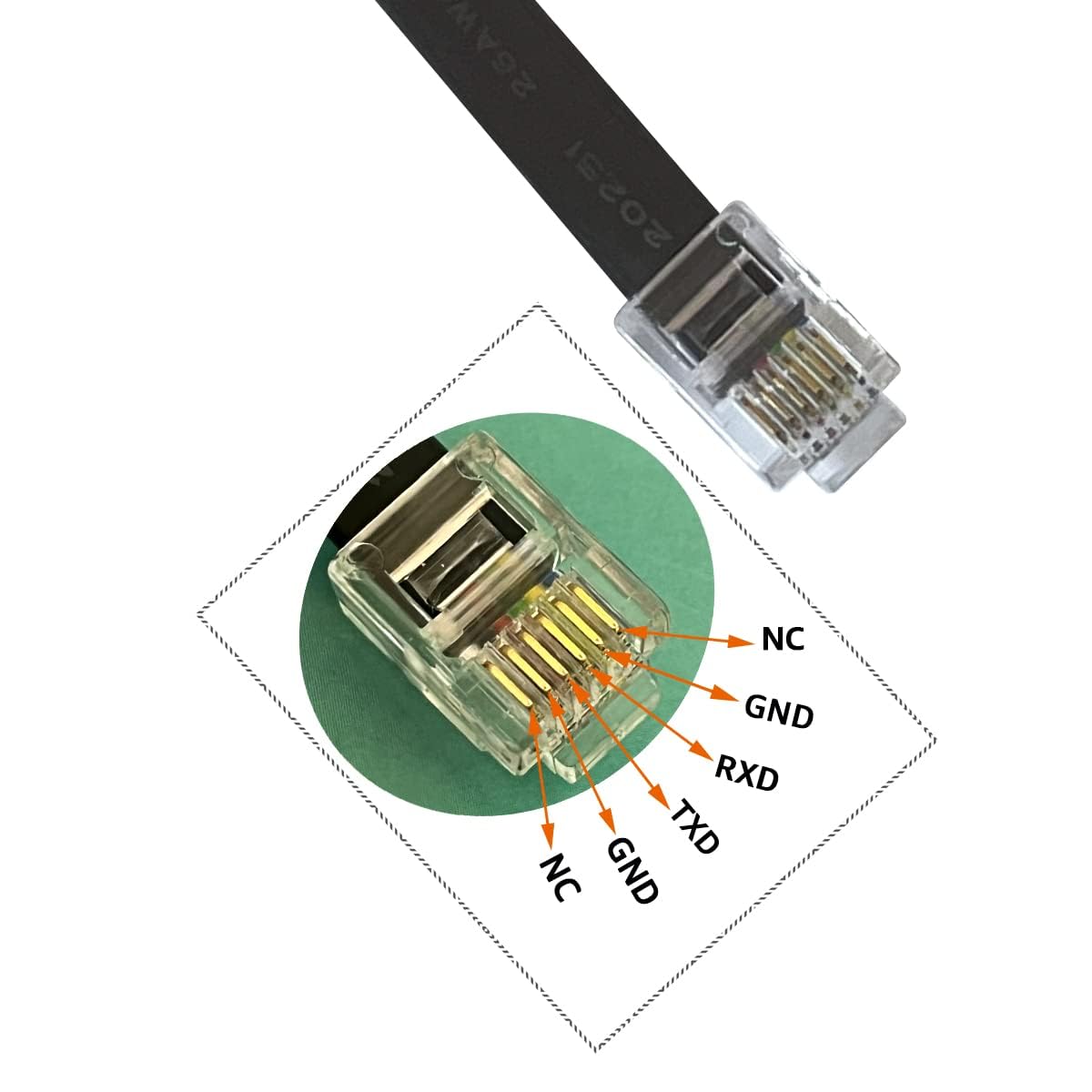

Although this data cable can transmit RS232 signals, it may not be compatible with your device. Because the line sequence of this data line is: NULL, Gnd, Tx, Rx, GND, NULL (please refer to the picture)
Different devices have different requirements for compatible data lines. You can adjust it manually or contact us for customization.
Applicable Equipment:

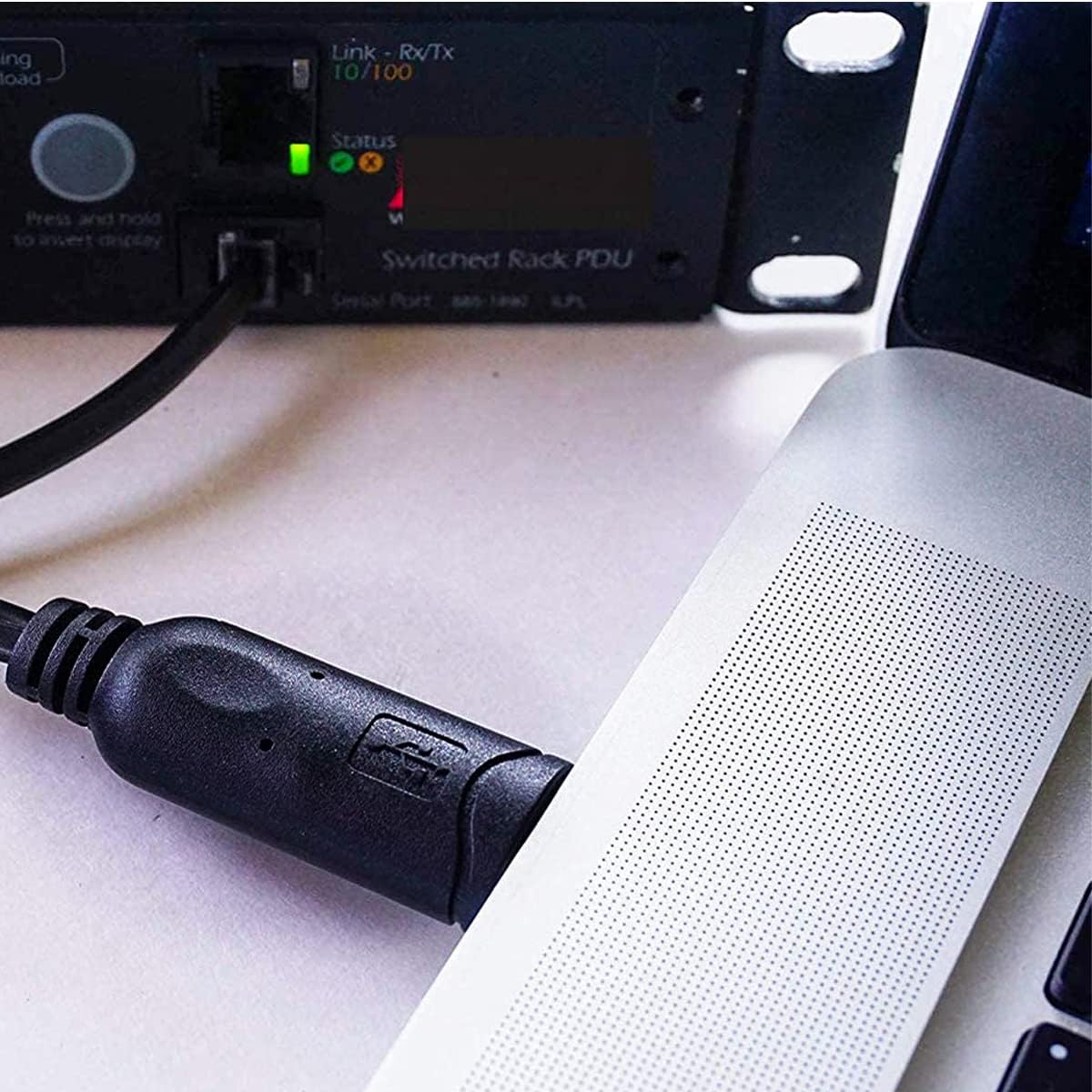

APC Automatic Transfer Switch:
AP7721, AP7723, AP7730, AP7732, AP7752
APC Rack PDU:
P78xx, AP79xx, AP86xx, AP88xx, AP89xx
Metered-by-Outlet with Switching Rack PDU:
AP8632, AP8641, AP8653, AP8659, AP8659EU3, AP8659NA3, AP8661, AP8681
Metered Rack PDU:
AP7152, AP7155, AP7175,AP7800, AP7801, AP7802, AP7802J, AP7811, AP7820
Metered-by-Outlet Rack PDU:
AP8441, AP8453,AP8459EU3, AP8459NA3, AP8459WW, AP8461, SPD10K
Switched Rack PDU:
AP7900, AP7901, AP7902, AP7902J, AP8930J, AP8931, AP8932, AP8930
List of supported systems:
1,Windows 7,8,10
2, various Linux OS and Mac OS
Packing list:
1 X SH-RJ12 USB to RJ12/RJ11 Serial Cable(5.9 Feet)
1 X User Manual
WARRANTY:
DSD TECH offers a 1-year warranty and lifetime technical support for this USB to RJ12/RJ11 Serial Cable.If you meet any questions, Please contact us, We will fix your issue within 24 hours.
- DSD TECH: DSD TECH focuses on the development of communication connection devices such as USB/Serial/Wireless. We have served more than 100,000 customers in Europe, North America and Japan.
- USB to RJ12/RJ11: RJ12 and RJ11 are the same on the physical interface. The difference is that RJ12 uses 6 data lines, while RJ11 uses 4 data lines.This cable leads to 4 signals: GND, Tx, RX, GND.
- Silicon Labs CP2102N:CP2102N is an upgraded version of CP2102 chip, with the same high performance and compatibility as FTDI FT232RL.
- Replacement for APC Part# 940-0144A. Suitable for the following models: AP77XX AP78XX AP79XX AP86XX AP88XX AP89XX
- Warranty:DSD TECH provide a 1 year warranty and lifetime technical support for this USB to RJ12/RJ11 Serial Cable.if you have any questions, please feel free to contact us. We will respond within 24 hours.
